High Flow Quick Open with high pressure bag filter stainless steel housing

MOQ : 1set

Price : $129-$300/set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000SETS/PER YEAR

Delivery Time : 30 working days

Packaging Details : wooden carton

Max flow rate-water : 12-20 m3

Spec : 3 bags to 24 bags

Max.pressure : 150psi

Replace the pressure : 0.6/1.0/1.6MPa

Design temperature : 0-200℃

Working pressure : 12 bar

Contact Now

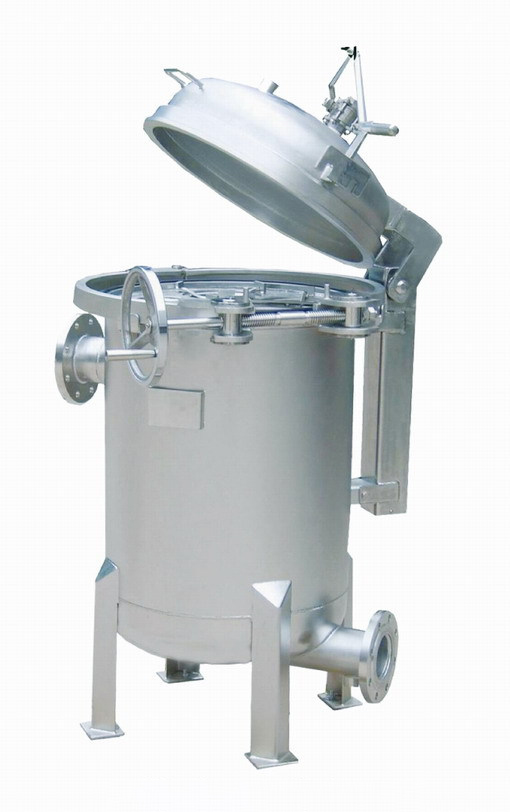

Hoop quick open and the spring lift the top cover.
The top cover can be open quickly, safely, simply. Easy to change thefilter bags and cost effective.
Each filter bag has the locking device and Ensure the sealing well.
ASME Designs standard.

Multiple bag filter is from 3 bags to 12 bags.

Filter Type	Size	No. of Filter Bag	Theoretical Flow Rate	Max. Operating Pressure	Max. Operating Temperature	Filter Area	Inlet/Outlet
HTMF-02-B-2-10-065G	#02	2	80 m³ /hour	10.0bar	120℃	1.0 m2	3” - 4”
HTMF-03-B-2-10-080G	#02	3	120 m³ /hour	10.0bar	120℃	1.5 m2	3” - 4”
HTMF-04-B-2-10-100G	#02	4	160 m³ /hour	10.0bar	120℃	2.0 m2	3” - 6”
HTMF-05-B-2-10-125G	#02	5	200 m³ /hour	10.0bar	120℃	2.5 m2	4” - 6”
HTMF-06-B-2-10-150G	#02	6	240 m³ /hour	10.0bar	120℃	3.0 m2	4” - 6”
HTMF-08-B-2-10-200G	#02	8	320 m³ /hour	10.0bar	120℃	4.0 m2	6” - 8”
HTMF-10-B-2-10-250G	#02	10	400 m³ /hour	10.0bar	120℃	5.0 m2	8” - 10”
HTMF-12-B-2-10-300G	#02	12	480 m³ /hour	10.0bar	120℃	6.0 m2	8” - 10”

High Flow Quick Open with high pressure bag filter stainless steel housing

Q1 : Where is your factory located?
A1 : Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China

Q2 : Are you an integrated supplier for industrial filter machine ?
A2 : Yes, we can provide the complete solution line to customer according to customer’s requirement.

Q3 : How about the quality control in your factory?
A3 : Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow

up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully

before shipment.

Q4 : Will you offer the pre-sales service?
A4 : Yes, we have an experienced pre-sales team to support customers not only including machine, technology

also water.

electrical,machine layout in factory, etc.

Q5 : What about the after-service? Will you send your engineer to my country to help commission and install the

machine?
A5 : Surely, we have many experience technical engineers for oversea service, they would help you install machine

and support training to workers also.

Q6 : What is the delivery time of the machine?
A6 : Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery

time of standard machine could be within 10-30 days

Q7 : What is the warranty of the machine ?
A7 : The whole machine’s warranty period is 12 months and key parts will be depended.

Q8 : Do you provide any spare parts with machine?
A8 : Yes, CROWNS will provide one set standard spare parts to customer according to different machines
